Analog ORP Sensor For Drinking Water Or Surface Water

Name: Analog ORP Sensor For Drinking Water Or Surface Water
Brand: Suzhou Delfino Environmental Technology Co., Ltd.
SKU: Asr101e
Price: 137.00 USD
Availability: InStock

Todos los productos

analizador del pH ORP
(48)

regulador del pH ORP
(39)

sensor del pH ORP
(88)

Analizador de la turbiedad
(54)

Analizador disuelto del oxígeno
(32)

Analizador de la conductividad
(49)

Analisador de sólidos en suspensión
(25)

Analisador de COD
(17)

Analisador de cloro
(21)

Analisador de clorofila
(21)

Probador azul de las algas verdes
(17)

Analisador de amoníaco
(11)

Analista portátil
(2)

Analisador de desinfectante
(25)

Analizador multi del parámetro
(3)

Analista de calidad del agua
(32)

Los Mejores Productos

Sensores de NTC10K pH ORP

Certificación

CHINA Suzhou Delfino Environmental Technology Co., Ltd. certificaciones

Estoy en línea para chatear ahora

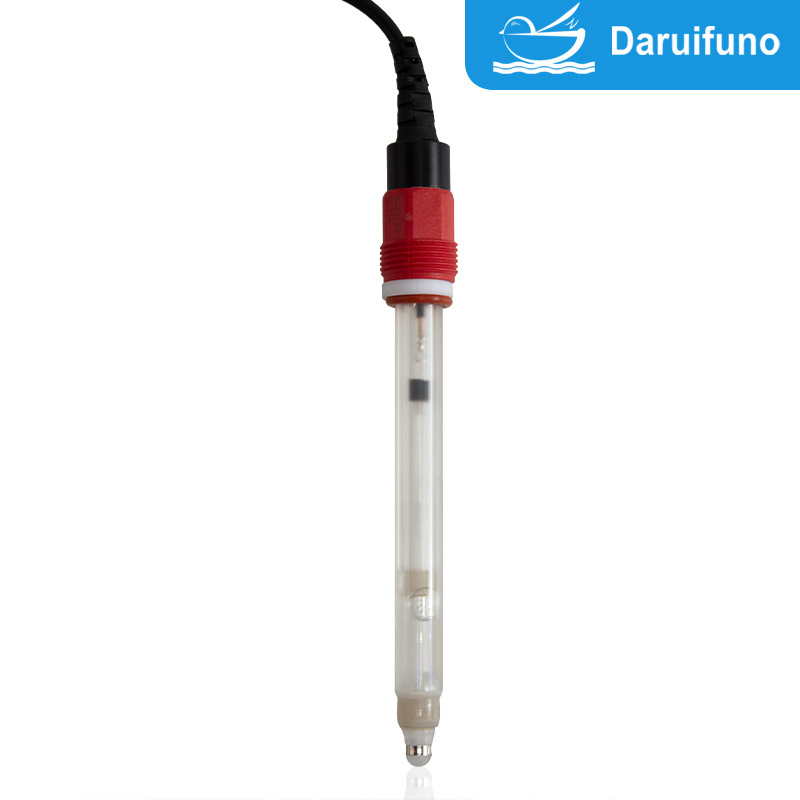

Analog ORP Sensor For Drinking Water Or Surface Water

Ampliación de imagen : Analog ORP Sensor For Drinking Water Or Surface Water

Datos del producto:

Lugar de origen:	PORCELANA
Nombre de la marca:	Daruifuno
Certificación:	CE, ISO
Número de modelo:	Asr101e

Pago y Envío Términos:

Cantidad de orden mínima:	1
Precio:	USD25-250
Detalles de empaquetado:	Caja de cartón
Tiempo de entrega:	3-10 días de trabajo
Condiciones de pago:	T/T, Western Union, Moneygram
Capacidad de la fuente:	10000 conjuntos por mes

Contacto

Analog ORP Sensor For Drinking Water Or Surface Water

descripción

Nombre del producto:	Sensor de ORP	Rango de medición:	±2000mV
Cero (e0) pH:	± 20mV	AGUA SUCIA%:	＞ 95%
Presión de trabajo:	0-4 Bar	Temperatura de trabajo:	0~100℃
Unidad de temperatura:	PT100, PT1000, NTC10K personalizado	Cable:	5 metros estándar
Resaltar:	Analog ORP sensor for drinking water , ORP sensor for surface water , pH ORP sensor with warranty

Analog ORP Sensor for drinking water or surface water

The Daruifuno pH sensor ASP101E delivers precise ORP measurement across a full range of 0 to ±2000mV. Its advanced design features:

Operational and Environmental Capabilities

Engineered for versatile performance in diverse conditions:

Medium-to-low temperature range (0-80°C): Continuous operation at pressures up to 4 bar
High-temperature range (80-100°C): Continuous measurements for up to 30 minutes at 2 bar pressure

Detailed Performance Metrics

Optimal sample flow rate: 0.001 m/s to 0.5 m/s
Zero-point (E0) ORP: ±20mV for excellent calibration stability
Slope: Over 95% sensitivity
Temperature compensation options: PT100, PT1000, or customized NTC10K sensor

Installation and Design Flexibility

Standard dimensions: 12mm diameter × 120mm length (custom sizes available)

Installation options: Twist-proof cap or PG13.5 thread
Cable configuration: Integrated or detachable

Specifications

Model	ASP100E	ASR101E	ASR100E
Measuring Object	PHORP	ORP
Measuring Range	0~14pH	±2000mV	±2000mV
Indicator Electrode	Blue low impedance hemispherical glass membrane	Platinum	Platinum
Reference System	Ag/AgCl reference electrode, double salt bridge, KCl gel
Electrode Material	Glass annular ceramic hole	Glass Dot-shaped ceramic hole	Glass annular ceramic hole
Working Pressure	Medium/low temp: 0-4bar \| High temp: 0-2bar
Working Temp.	Medium/low temp: 0-80℃ continuous \| High temp: 80-100℃ (≤30 min)
Sample Flow Rate	0.001 m/s to 0.5 m/s
Zero (E0) pH	±0.25pH	±20mV	±20mV
SLOP%	＞95%
Temperature Unit	PT100, PT1000, NTC10K customized
Dimension	Standard: 12mm diameter × 120mm length (customized available)

Features & Advantages

Large capacity reference for extended service life
Optional cleaning connector for underwater maintenance
Available with PTFE protective cover and self-cleaning interface
Self-cleaning function enhances stability, accuracy, and reliability while reducing maintenance costs

The ASR101E glass pH sensor offers ultimate flexibility with custom mounting accessories for any industrial environment:

Sidewall Mounting: Ideal for large tanks and vessels
Top Flange Mounting: Perfect for sealed reactors
Pipe/Flow Cell Mounting: For in-line measurements
Submersible Mounting: For open tanks and channels
Manual Retractable Holder: Enables maintenance without process shutdown

Enhanced Durability with PTFE Sheath

The optional PTFE (Teflon) sheath provides exceptional corrosion resistance in harsh chemical environments. Featuring 3/4" NPT threads for easy attachment to mounting accessories, it ensures seamless integration across various applications.

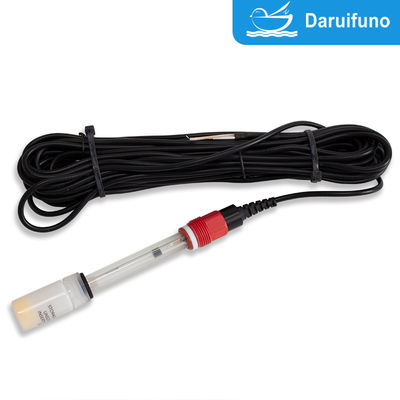

Analog ORP Sensor For Drinking Water Or Surface Water 0

Applications

The ASR101E ORP sensor serves critical monitoring needs across multiple industries:

Water treatment plants: Ensures ORP compliance throughout treatment processes
Industrial production: Monitors ORP in chemical, pharmaceutical, and food processing
Environmental monitoring: Tracks ORP in natural water bodies
Aquaculture: Maintains optimal pond conditions
Aquariums & pools: Protects aquatic life and swimmer safety
Research labs: Supports precise pH measurement in experiments

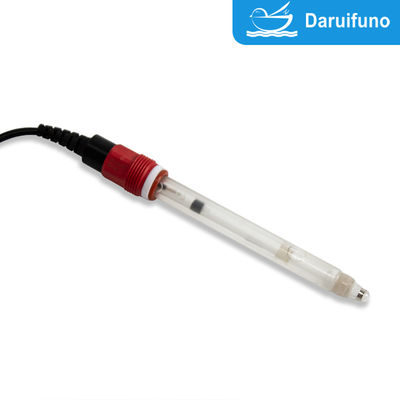

Analog ORP Sensor For Drinking Water Or Surface Water 1
